Description

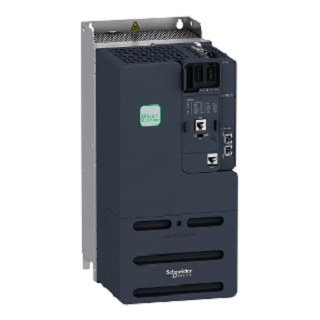

Schneider ATV340D15N4E Variable Speed Drive Altivar Machine ATV340

• Extended Product Type: Inverter
• Product ID: ATV340D15N4E
• Schneider Type Designation: Inverter

Specifications of Schneider ATV340D15N4E Variable Speed Drive Altivar Machine ATV340

• Range of product: Altivar Machine ATV340
• Product or component type: Variable speed drive
• Rated supply voltage: 380…480 V – 15…10 %
• motor power kW: 18.5 kW (normal duty), 15 kW (heavy duty)
• supply frequency: 50…60 Hz (- 5…5 %)
• line current: 44.9 A at 380 V without line choke (heavy duty), 35.7 A at 480 V without line choke (heavy duty)
  42.4 A at 380 V with external line choke (normal duty), 34.1 A at 480 V with external line choke (normal duty)
  45.5 A at 380 V with external line choke (heavy duty), 36 A at 480 V with external line choke (heavy duty)
• output voltage: <= power supply voltage
• height: 385 mm
• width: 180 mm
• depth: 249 mm
• product weight: 9.5 kg
