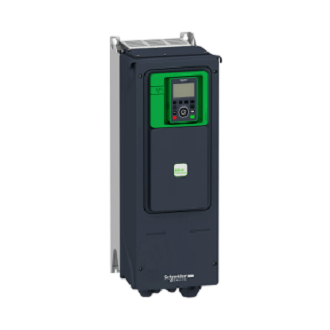

Schneider ATV950D11N4 Variable Motor Drive Altivar Process ATV900

• Extended Product Type: Inverter
• Product ID: ATV950D11N4
• Schneider Type Designation: Inverter

Motor Drives ATV950 No Switch UL Type12 15HP

Specifications of Schneider ATV950D11N4 Variable Motor Drive

• Range of product: Altivar Process ATV900
• Product or component type: Variable speed drive
• Rated supply voltage: 380…480 V (- 15…10 %)
• motor power kW: 90 kW (normal duty), 75 kW (heavy duty)
• supply frequency: 50…60 Hz (+/- 5 %)
• line current: 156.2 A at 380 V (normal duty), 135.8 A at 480 V (normal duty), 134.3 A at 380 V (heavy duty), 118.1 A at 480 V (heavy duty)
• output voltage: <= power supply voltage
• height: 922 mm
• width: 290 mm
• depth: 325.5 mm
• product weight: 59.5 kg
