Description

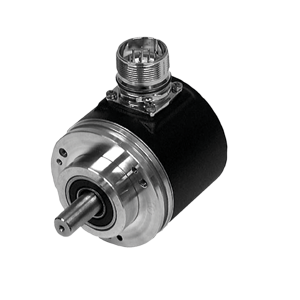

P+F AVM58N-011K1R0BN-1212 Encoder AVM58N011K1R0BN1212

• Extended Product Type: Encoder
• Product ID: AVM58N-011K1R0BN-1212
• P+F Type Designation: Encoder

Specification of P+F AVM58N-011K1R0BN-1212 Encoder

• Detection type: photoelectric sampling
• Device type: Multiturn absolute encoder
• Operating voltage: 4.5 … 30 V DC (SSI, SSI + RS422) ; 10 … 30 V DC (SSI + Push/Pull)
• Output code: Gray code, binary code
• Connector: type 9416 (M23), 12-pin, type 9416L (M23), 12-pin
• Pulses: 1024, 2048, 4096
• Mass: approx. 460 g (combination 1),   approx. 800 g (combination 2)
