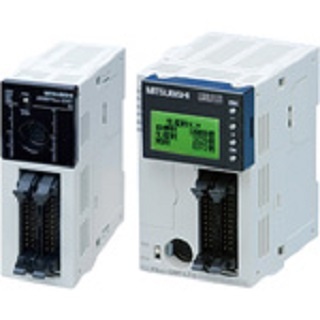

Mitsubishi FX3UC-32MT-LT PLC Input Output Module FX3UC32MTLT

Mitsubishi FX3UC-32MT-LT PLC Input Output Module FX3UC32MTLT

$610.00

AVAILABILITY: Generally allow 7-10 days to ship

12 in stock

SKU: FX3UC-32MT-LT Category: Tag:
Mitsubishi

Description

Mitsubishi FX3UC-32MT-LT PLC Input Output Module FX3UC32MTLT

High-end Compact Programmable Logic Controller (PLC) CPU main unit with integrated I/Os – Mitsubishi Electric (MELSEC-F (FX) Series FX3UC) – 32I/O [16DI (16 x digital inputs (DC transistor; Sink)) + 16DO (16 x digital outputs (5-30Vdc transistor; sink; 500mA; 0.2ms response))] – 64Ksteps (RAM; Program) memory capacity – connection capacity 256 x I/O points – with MIL ribbon cable connectors (I.O.s) – with RS-422 communication capability – Supply voltage 24Vdc – DIN rail mounting (34mm width) – equivalent to FX3UC32MTLT

Specifications of Mitsubishi FX3UC-32MT-LT Input Output Module

Primary brand: Mitsubishi Electric
Main function: CPU unit
Product series / family name: MELSEC-F (FX) Series
Sub-range name: FX3UC
Supply voltage (DC): 24Vdc
Memory capacity: 64Ksteps (RAM; Program), 7680 points (Auxiliary relays), 512 points (Timers), 235 points (Counters), 8000 points (Data registers), 32768 points (Extension registers)
Connection capacity: 256 x I/O points, 384 x I/O points (with CC-Link or AnyWireASLINK)
Connection type: MIL ribbon cable connectors (I.O.s)
Communication protocol: RS-422
Mounting mode: DIN rail
Digital inputs: 16 x digital inputs (DC transistor; Sink)
Digital outputs: 16 x digital outputs (5-30Vdc transistor; sink; 500mA; 0.2ms response)
Ambient air temperature for operation: 0…+55 °C
Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Ladder / Function block diagram (FBD), Structured text (ST), Sequential function chart (SFC)
Functions: High-end Compact Programmable Logic Controller (PLC) CPU main unit with integrated I/Os (Program execution type) Cyclical / Refresh mode processing
Compliant with standard(s): CE (EMC directive), cUL, KC, ABS, DNV GL, LR, BV, RINA
Processing time: 0.065μs / instruction (contact instruction) – 0.000065 ms, 0.642μs / instruction (MOV instruction) – 0.000642 ms
Power consumption: 8 W
Equivalent to: FX3UC-32MT-LT
Ambient air temperature for storage: -25…+75 °C
