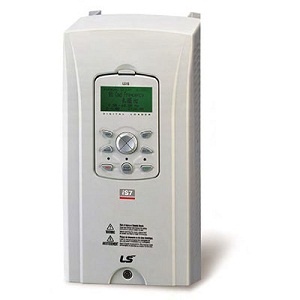

LS Frequency Converter SV0185IS7-4NO

Description

LS Frequency Converter SV0185IS7-4NO

• Extended Product Type : Other

• Product ID : SV0185IS7-4NO

• LS Type Designation : Other

Specification of LS SV0185IS7-4NO

• Main function : Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series : LS-iS7 series
• Supply voltage (AC) : 380Vac-480Vac (3-phase) (-15%…+10%) (400Vac / 415Vac / 440Vac)
• Rated current  : 45A (VT; normal duty),  39A (CT; heavy duty)
• Digital inputs : 4 x digital inputs (24Vdc; NPN/Sink or PNP/Source) (FX Forward; RX Reverse; BX Emergency stop; RST Reset)
• Digital outputs : 2 x digital inputs (Safe-Torque OFF STO A and B),  1 x digital output (SPDT Form-C NO/NC rly. contact; 1A at 250Vac/30Vdc),  1 x digital output (open-collector; 26Vdc; below 100mA)
• Dimensions : W11″ x H18.2″ x D11.7″
