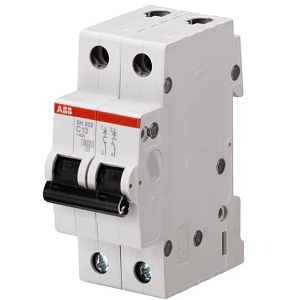

ABB Miniature Circuit Breaker SH202-D16

Description

ABB Miniature Circuit Breaker SH202-D16

• Extended Product Type : Circuit Breaker

• Product ID : SH202-D16

• ABB Type Designation : Circuit Breaker

Description

• Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (from 0,5 A up to 63 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.

Specification of ABB SH202-D16

• Rated Current  : 16 A
• Number of Poles : 2
• Trip type : D
• Net Weight : 0.25 kg
