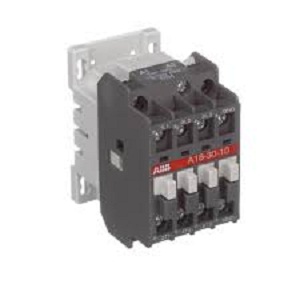

ABB Contactor A16-30-01 110VAC

Description

ABB Contactor A16-30-01 110VAC

• Extended Product Type : Contactor

• Product ID : A16-30-01 110VAC

• ABB Type Designation : Contactor

Description

• A16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The A… series 1-stack 3-pole contactors are of the block type design. – Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks – Control circuit: AC operated with laminated magnet circuit – Accessories: a wide range of accessories is available.

Specification

• Number of Main Contacts NO : 3
• Rated Operational Voltage : Main Circuit 690 V
• Rated Control Circuit Voltage : 50 Hz 110 V
• Rated Frequency (f) : Supply Circuit 50 60 Hz
• Mechanical Durability : 10 million
• Product Net Weight : 0.34 kg
