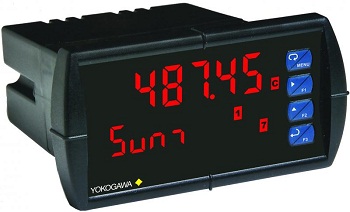

YPP6100 Strain Gauge Meter

The PROPLUS YPP6100 is a multipurpose, easy to use digital strain gauge & load cell meter ideal for weighing and force measurement applications. It accepts mV input signals up to 300 mV. The basic model includes an isolated 5 or 10VDC Sensor power supply that can be used to power the input Sensor or 24 VDC for other devices.

Features include:

• 15, 30, 150, 300 mV Unipolar Input Ranges
• ±:15, ±:25, ±:150, ±:250 mV Bipolar Input Ranges
• Selectable 5 or 10 VDC Sensor Excitation
• Capture or Programmable Tare Feature
• Max/Min or Peak/Valley Hold Feature
• Ratiometric Operation
• Large Dual-Line 6-Digit Display, 0.60″ & 0.46″
• Dual-Scale Feature – Single Input
• Rounding Function 1, 2, 5, 10, 20, 50, or 100
• Auto-Zero Feature Eliminates Zero Drift
• Programmable Display & Function Keys
• 32-Point Linearization
• NEMA 4X, IP65 Front
• Universal 85-265 VAC, or 12/24 VDC Input Power Models
• 2 or 4 Relays + Isolated 4-20 mA Output Options
• External 4-Relay & Digital I/O Expansion Modules
• USB, RS-232, & RS-422/485 Serial Communication Options
• Modbus RTU Communication Protocol Standard
• Configure, Monitor, and Datalog from a PC with Free PROPLUS Software
