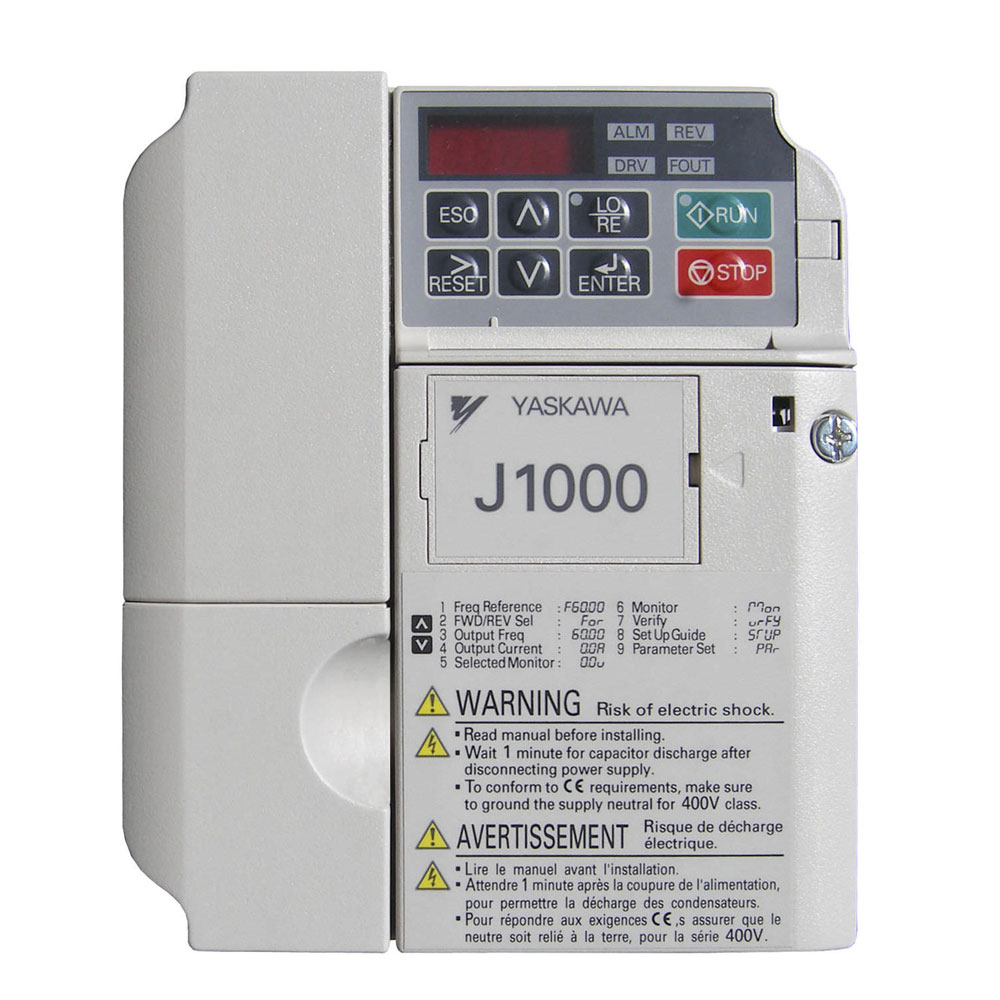

Yaskawa J1000 Inverter

Yaskawa J1000 Series AC Inverter for 1.5kW (2HP) 230V 3ph motor to 8A at high overload or 2.2kW (3HP) to 9.6A when Fan/Pump rated. Operates in VxF control and converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V for a standard AC Induction motor.

Size 2E: 108mm Wide x 154mm Deep x 128mm High. IP20
Weight: 1.8kg.

Overload: 150% x 60 seconds. High Overload.
Overload: 120% x 60 seconds. Fan/Pump Rated.
Speed Control Range: 0.01-400Hz.
Braking: Included.

1 x Analogue Input, 1 x Analogue Output, 5 Digital Inputs, 1 Relay Output.

Input Current: 14.1A at High Overload, 20.2A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%
EMC Filters: None (see linked products below for external filter)

Cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: [not specified], above and below: 100mm, at sides: 30mm (2mm when drives mounted side by side).
Heat Loss at max output: 80.7W.
Mounting via 4 x M4 bolts (not supplied) at rear on 96mm x 118mm centres.

Manufacturer part number is CIMR-JCBA0010BAA.

Description

Yaskawa J1000 Series AC Inverter for 1.5kW (2HP) 230V 3ph motor to 8A at high overload or 2.2kW (3HP) to 9.6A when Fan/Pump rated. Operates in VxF control and converts fixed frequency Single Phase 230V input to variable frequency Three Phase 230V for a standard AC Induction motor.

Size 2E: 108mm Wide x 154mm Deep x 128mm High. IP20
Weight: 1.8kg.

Overload: 150% x 60 seconds. High Overload.
Overload: 120% x 60 seconds. Fan/Pump Rated.
Speed Control Range: 0.01-400Hz.
Braking: Included.

1 x Analogue Input, 1 x Analogue Output, 5 Digital Inputs, 1 Relay Output.

Input Current: 14.1A at High Overload, 20.2A when Fan/Pump rated.
Input Voltage: 200-240V Single Phase -15% +10% at 50-60Hz ±5%
EMC Filters: None (see linked products below for external filter)

Cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: [not specified], above and below: 100mm, at sides: 30mm (2mm when drives mounted side by side).
Heat Loss at max output: 80.7W.
Mounting via 4 x M4 bolts (not supplied) at rear on 96mm x 118mm centres.

Manufacturer part number is CIMR-JCBA0010BAA.
