Yaskawa GA80U4605ABM AC Drive 500HP 675A (GA80U4605ABM)

• Extended Product Type: AC Drives
• Product ID: GA80U4605ABM
• Yaskawa Type Designation: AC Drives

Description of Yaskawa GA80U4605ABM AC Drive 500HP

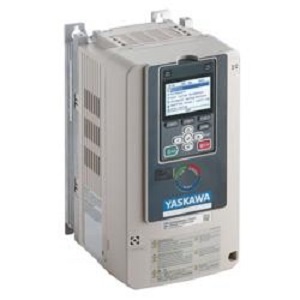

Yaskawa GA80U4605ABM Variable Speed/Frequency Drive (VSD/VFD) / Inverter – for industrial applications – Yaskawa (GA800 series) – Input voltage (3-phase (3P)) 480Vac – Rated active power 500HP (Normal duty) – Rated output current 675A (Normal duty) – frequency (output) 0-590Hz – IP20 – with RS-485 communication capability – Wall mounting – Built-in SIL3 STO- with Integrated DC reactor + Integrated brake transistor – 3-phase 480V class – ordering code GA80U4605ABM

Specification of Yaskawa GA80U4605ABM AC Drive 500HP 675A

• Primary brand: Yaskawa
• Main function: Variable Speed/Frequency Drive (VSD/VFD) / Inverter
• Product series / family nameGA800 series
• Network frequency: (output) 0-590 Hz, (input) 50/60 Hz
• Functions: Variable Speed/Frequency Drive (VSD/VFD) / Inverter – for industrial applications, High resolution multi-language display, Bluetooth and Drive Wizard Mobile, Drive Wizard, Desktop for comprehensive configuration and monitoring, DriveWorks EZ (embedded function blocks) provides extra flexibility, Fast acting motor control functions provide, Closed or open loop vector control
• Supply voltage (AC): 480Vac
• Display: LCD keypad display; backlit
• Type of network: 3-phase input (3P)
• Rated current: 675A (Normal duty), 605A (heavy duty)
• Rated power (HP): 500HP (Normal duty), 450HP (heavy duty)
• Communication protocol: RS-485
• Mounting mode: Wall mounting
• Digital inputs: 1 x digital input (24Vdc; Sink/Source) (S1 – Forward Run/Stop)
  • 1 x digital input (24Vdc; Sink/Source) (S2 – Reverse Run/Stop)
  • 1 x digital input (24Vdc; Sink/Source) (S3 – External fault)
  • 1 x digital input (24Vdc; Sink/Source) (S4 – Fault reset)
  • 1 x digital input (24Vdc; Sink/Source) (S5 – Multi-step speed 1)
  • 1 x digital input (24Vdc; Sink/Source) (S6 – Multi-step speed 2)
  • 1 x digital input (24Vdc; Sink/Source) (S7 – Jog command)
  • 1 x digital input (24Vdc; Sink/Source) (S8 – External Baseblock)
  • 1 x digital input (Master speed pulse train input)
• Digital outputs: 1 x digital output (SPDT Single Pole Double Throw contact type) (MA-MB-MC; MC-MB closed means fault)
  • 1 x digital output (NO Normally Open contact type / Multi-function contact output) (M1-M2)
  • 1 x digital output (NO Normally Open contact type / Multi-function (Zero speed) contact output) (M3-M4)
  • 1 x digital output (NO Normally Open contact type / Multi-function (Speed agree 1) contact output) (M5-M6)
  • 1 x digital output (multi-function pulse train) (MP)
• Analog inputs: 1 x analog input (0-20mA / 4-20mA / -10…+10Vdc / 0-10Vdc) (Analog Input 1 – master frequency reference)
  • 1 x analog input (0-20mA / 4-20mA / -10…+10Vdc / 0-10Vdc) (Analog Input 1 – master frequency reference)
  • 1 x analog input (0-20mA / 4-20mA / -10…+10Vdc / PTC input) (Analog input 3 – Aux. frequency reference)
• Analog outputs1 x analog output (4-20mA / -10…+10Vdc / 0-10Vdc) (FM – to output frequency meter)
  • 1 x analog output (4-20mA / -10…+10Vdc / 0-10Vdc) (AM – to output current meter)
• Degree of protectionIP20
• Technology used in component: Built-in SIL3 STO, Integrated DC reactor, Integrated brake transistor
• Application type: Industrial applications
• Order code / Manufacturer SKU: GA80U4605ABM
• Manufacturer product status: Commercialized
• Compliant with standard(s), UL, CSA, CE, RCM
