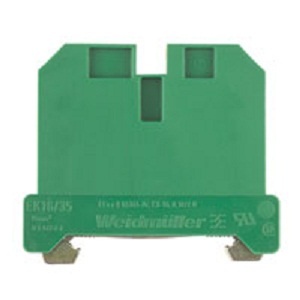

Weidmueller Terminal Block EK 16/35

Description

Weidmueller Terminal Block EK 16/35

• Extended Product Type : Other

• Product ID : EK 16/35

• Weidmueller Type Designation : Other

Specification of Weidmueller EK 16/35

• Material : PA 66
• Colour : yellow, green
• Number of clamping points per level : 2
• Number of levels : 1
• Version : Screw connection, With PE connection, in closed state
• Number of similar terminals : 1
• Blade size : 1.0 x 5.5 mm
• Number of connections : 2
• Rated cross-section : 16 mm²
• Rated voltage to adjoining terminal : 800 V
• Net weight : 41.86 g
