Triconex 3704E Module Product

Description

Additional Information

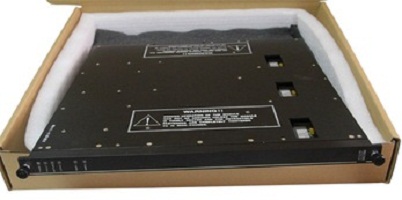

3704E TRICONEX 3704E MODULE 7400125-110 3704E

Voltage                         0-5V or 0-10V1, + 6%
Type                              TMR, AI
No. of Input Points               64, commoned
Isolated Points                   No
Input Update Rate                  75 ms
Resolution                          12 bits
Accuracy                         < 0.25% of FSR from 0° to 60°C
Input Resistance (load)           30 MΩ (DC), min
Power-Off Resistance              30 kΩ (DC), typical
Common Mode Rejection              n/a
Common Mode Range                    n/a
Leg-to-Leg Isolation                 200 kΩ, typical
Normal Mode Rejection               -1 dB @ 8Hz
-12 dB @ 60Hz
-18 dB @ 120Hz
Input Overrange Protection          150 VDC/115 VAC continuous
Current Range                        0-20 mA,
250Ω shunt for 5V
500Ω shunt for 10V
Diagnostic Indicators                  PASS, FAULT, ACTIVE
Module Status
Color Code                           Copper
