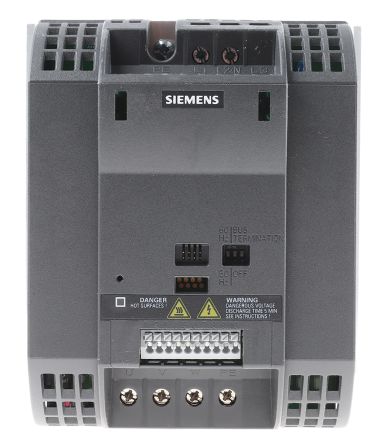

Siemens inverter Siemens Ac Drive SINAMICS G110

Siemens SINAMICS G110 Series AC Frequency Inverter for 0.12kW (0.16HP) 230V 3 Ph motor in VxF control to 0.9A. Simple to set-up and converts single phase 230V input to three phase 230V for speed control of a standard AC Induction motor.

Does not include Operator Station (Keypad). See linked products below for BOP option.

Size A1 – 90mm Wide x 116mm Deep x 150mm High. IP20
Weight: 0.7kg

Overload – 150% x 60 seconds then 85% x 4 minutes every 5 minutes.
Speed Control Range – 0Hz to 650Hz.
Braking – No Brake Chopper (DC and Compound braking only).

DC Bus +/-, 3 Digital Inputs, 1 Analogue Output, 1 Digital Output, 1 RS485 Input (USS protocol).

Input Current – 2.3A
Input Voltage – Single Phase 200-240V ±10% at 50-60Hz ±5%
EMC Filter: None

Wall mount in clean environment or cubicle mount.
Rated 50°C Ambient
Ventilation space in front [not specified]
Ventilation space above and below – 100mm.
Ventilation space at sides – 15mm
Heat Loss at max output – 22W.
Mounting via 2 x M4 bolts at rear on 79mm x 140mm centres.

Full part number is – 6SL3211-0AB11-2UB1 (6SL32110AB112UB1)

Description

Siemens SINAMICS G110 Series AC Frequency Inverter for 0.12kW (0.16HP) 230V 3 Ph motor in VxF control to 0.9A. Simple to set-up and converts single phase 230V input to three phase 230V for speed control of a standard AC Induction motor.

Does not include Operator Station (Keypad). See linked products below for BOP option.

Size A1 – 90mm Wide x 116mm Deep x 150mm High. IP20
Weight: 0.7kg

Overload – 150% x 60 seconds then 85% x 4 minutes every 5 minutes.
Speed Control Range – 0Hz to 650Hz.
Braking – No Brake Chopper (DC and Compound braking only).

DC Bus +/-, 3 Digital Inputs, 1 Analogue Output, 1 Digital Output, 1 RS485 Input (USS protocol).

Input Current – 2.3A
Input Voltage – Single Phase 200-240V ±10% at 50-60Hz ±5%
EMC Filter: None

Wall mount in clean environment or cubicle mount.
Rated 50°C Ambient
Ventilation space in front [not specified]
Ventilation space above and below – 100mm.
Ventilation space at sides – 15mm
Heat Loss at max output – 22W.
Mounting via 2 x M4 bolts at rear on 79mm x 140mm centres.

Full part number is – 6SL3211-0AB11-2UB1 (6SL32110AB112UB1)
