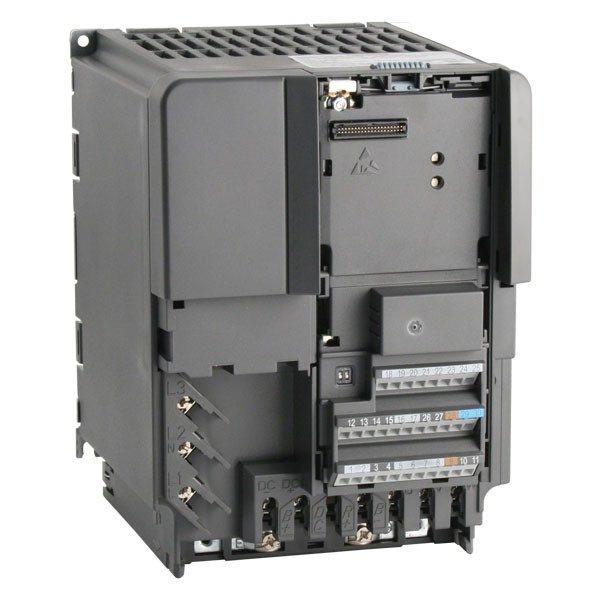

Siemens AC Drive Miscromaster 440 6SE6440-2UD22-2BA1

A high performance vector control inverter, offering more advanced or sophisticated control

Features and benefits

A high performance vector control inverter, offering more advanced or sophisticated control
Overload capability, 200% rated current for 3s, 150% rated current for 60s (within 5mins)
High quality integrated PID controller (auto tuning)
Integral class A EMC filter on specified units
Uses the same accessories as the Micromaster 420, e.g. operation panels & filter
Integrated braking chopper

Note

An operator panel will be required to operate this unit or to modify the factory set parameters

Siemens Micromaster 420//440 Range

The 400 series family is the next step in the evolution of the Micromaster inverter range. It builds on the success of the previous versions, which made it a global favourite for motor control.

Description

Micromaster 440,1-phase 230V input or 3-phase 440V input

A high performance vector control inverter, offering more advanced or sophisticated control

Features and benefits

A high performance vector control inverter, offering more advanced or sophisticated control
Overload capability, 200% rated current for 3s, 150% rated current for 60s (within 5mins)
High quality integrated PID controller (auto tuning)
Integral class A EMC filter on specified units
Uses the same accessories as the Micromaster 420, e.g. operation panels & filter
Integrated braking chopper

Note

An operator panel will be required to operate this unit or to modify the factory set parameters

Siemens Micromaster 420//440 Range

The 400 series family is the next step in the evolution of the Micromaster inverter range. It builds on the success of the previous versions, which made it a global favourite for motor control.

Specifications
Attribute Value
Power Rating 2.2 kW
Phase 3
Supply Voltage 380 → 480 V ac
Current Rating 7.5 A
Output Frequency 0 → 550 Hz
Ambient Temperature -10 → +50°C
Overall Width 149mm
Overall Length 202mm
Overall Depth 172mm
IP Rating IP20
Series MICROMASTER 440
