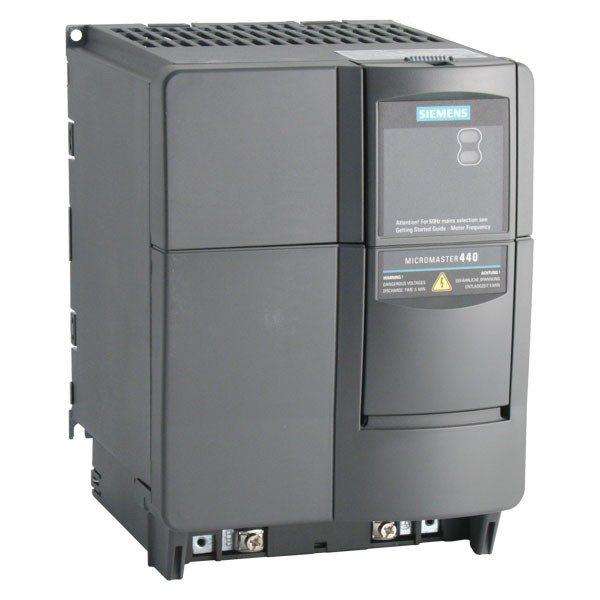

Siemen Inverter 6SE6440-2UD31-1CA1 Siemens Drive

Siemens Micromaster 440 (MM440) Series AC Frequency Inverter for 11kW (15HP) 400V 3 Ph motor to 26A at high overload, or 15kW (20HP) to 32A when Fan/Pump rated, operates in VxF or Sensorless (open loop) Flux Vector control. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size C – 185mm Wide x 245mm High x 195mm Deep. IP20.

Overload – 150% x 60seconds and 200% x 3seconds (11kW High Overload).
Overload – 110% x 60seconds and 140% x 3seconds (15kW Fan/Pump rated).
Speed Control Range – 0Hz to 650Hz.
Braking – To 56 Ohm minimum external resistor (not supplied)  – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.

2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs
Input Current – 23.1A at high overload or 33.8A when Fan/Pump rating set.
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for equivalent with EMC filtering.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Mounting via 4 x M5 Bolts.

Full part number is – 6SE6440-2UD31-1CA1 or 6SE64402UD311CA1. Note: Siemens is sometimes incorrectly spelled Seimens.

Description

Siemens Micromaster 440 (MM440) Series AC Frequency Inverter for 11kW (15HP) 400V 3 Ph motor to 26A at high overload, or 15kW (20HP) to 32A when Fan/Pump rated, operates in VxF or Sensorless (open loop) Flux Vector control. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size C – 185mm Wide x 245mm High x 195mm Deep. IP20.

Overload – 150% x 60seconds and 200% x 3seconds (11kW High Overload).
Overload – 110% x 60seconds and 140% x 3seconds (15kW Fan/Pump rated).
Speed Control Range – 0Hz to 650Hz.
Braking – To 56 Ohm minimum external resistor (not supplied)  – See the Resistor options linked below or use the ‘Which Resistor’ button on this page.

2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs
Input Current – 23.1A at high overload or 33.8A when Fan/Pump rating set.
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for equivalent with EMC filtering.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 100mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Mounting via 4 x M5 Bolts.

Full part number is – 6SE6440-2UD31-1CA1 or 6SE64402UD311CA1. Note: Siemens is sometimes incorrectly spelled Seimens.
