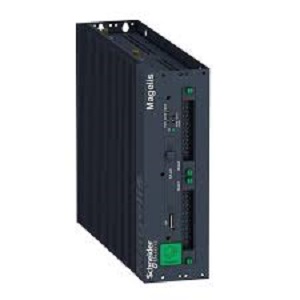

Schneider Electric HMIBMUCI29D2W01

Description

Schneider Electric HMIBMUCI29D2W01

• Extended Product Type : PLC

• Product ID  : HMIBMUCI29D2W01

• Schneider Type Designation : PLC

Description

• Industrial iPC box PC with 2 expansion slots – Schneider Electric (Magelis iPC) – IP40 – 4GB DDR3 (RAM) + 32GB CFast memory capacity – can connect with mini-PCIe slots (expansion) x 2 – with RS-232 + RS-485 + RS-422 + Ethernet communication capability – 24Vdc supply voltage – with USB 2.0 ports x 2 + USB 3.0 ports x 2 + WLAN A antenna + WLAN B antenna + GPRS antenna + RJ45 ports x 2 + 9-pin male D-Sub connector + DisplayPort connectors x 2 + Ground connection pin + Slide-in CFast card slot + HDD/SSD ports x 2 – Wall / Book / DIN rail / Flat mounting – with WES 7 Premium SP1 (64-bit) OS pre-installed – Intel Celeron 2980U 1.6GHz processor – with TPM 2.0 module (cybersecurity encryption) – Replaces HMIBUCND1E01 / HMIPUC7D0E01 / HMIPUC9D0E01

Specification of Schneider HMIBMUCI29D2W01

• Series : Magelis iPC
• Main function : Industrial PC
• Functions : Industrial iPC box PC with 2 expansion slots with buzzer reset button
• Supply voltage (DC) : 24Vdc
• Power consumption : 17.8 W, (max) 33.6 W
