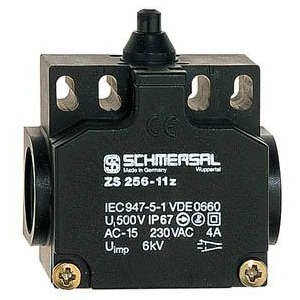

Schmersal Limit Switch TS-256-02Z-M20

Description

Schmersal Limit Switch TS-256-02Z-M20

• Extended Product Type : Switch

• Product ID : TS-256-02Z-M20

• Schmersal Type Designation : Switch

Features

• 2 cable entries M 20 x 1.5
• Mounting details to EN 50047
• Thermoplastic enclosure
• Double-insulated
• 58 mm x 50,5 mm x 31 mm
• Good resistance to oil and petroleum spirit
• Wide range of alternative actuators
• Actuator heads can be repositioned by 4 x 90°

Specification of Schmersal TS-256-02Z-M20

• Design of electrical connection :  Screw connection
• Positive break force : 19 N
• Rated impulse withstand voltage Uimp : 6 kV
• Rated insulation voltage Ui : 500 V
• Thermal test current Ithe : 10 A
