Description

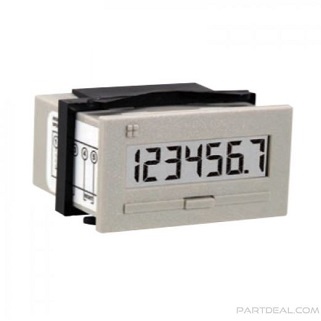

Redington Counters 5320-1000 Model 53 Electronic LCD Totalizer 48M1310

The Redington Model 53 Electronic LCD Totalizer 5320-1000 comes with 7 LCD digits, 999999.9, and internal lithium battery, is ideal for applications requiring time accumulation for maintenance scheduling, warranty monitoring, lease time or fee computation.

Digital Hour Meter; Time Range:999999.9; Character Size:0.32″; Color:Tan; Connector Type:Terminal Block; Counter Supply Voltage:3-30VDC; No. of Digits / Alpha:7; Reset Type:Remote; Supply Voltage Max:30V; Supply Voltage Min:3V

PRODUCT FEATURES of Redington Counters 5320-1000 Electronic LCD Totalizer

• Lithium battery
• Remote reset
• Switch (no-voltage)

PRODUCT SPECIFICATIONS of Redington Counters 5320-1000 Electronic LCD Totalizer

• Part No.: 5320-1000
• Figures: 7 LCD figures, 0.32’’ [8mm] high
• Reset: Remote
• Inputs: 3-30VDC
• Power: Self-powered (internal lithium battery)
• Mounting: Panel with clip
• Terminations: Terminal block
• Weight: 2 oz. [57g]
• Battery Life: ~20years
• Accuracy: Quartz accuracy (better than 0.01%)
• Approvals: UL Recognized, CSA Certified, CE Compliant
• Temperature Operating: -4°F to +140°F [-20°C to +60°C]
• Storage: -40°F to +165°F [-40°C to +75°C]
• Humidity: 0 to 95% RH, non-condensing
• Vibration Operating: 10 to 55Hz, 0.01” [0.25mm] double amplitude
• Non-Operating: 10 to 55Hz, 0.03” [0.75mm] double amplitude
• Shock Operating: 10G
• Non-Operating: 30G
• Dielectric: 1000VAC 50/60Hz for 1 minute
• Color: Tan
• Function: Hours
