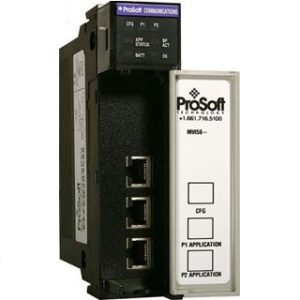

Prosoft PLC Communication Module MVI56-MNETCR
The MVI56E Modbus TCP/IP Multi Client Enhanced Communication Module for Remote Chassis allows Rockwell Automation ControlLogix Programmable Automation Controllers (PACs) to interface easily with multiple Modbus TCP/IP server-compatible instruments and devices. The Multi Client module improves performance when controlling multiple servers on a Modbus TCP/IP network, by supporting up to 30 clients.
MVI56E enhancements include configuration and management through the module Ethernet port, CIPconnect technology for bridging through ControlNet and EtherNet/IP networks, and has a web server to access on-board documentation, Add-On Instructions, and sample program files.
This module uses a small I/O data image for transfer of data between the module and the ControlLogix processor, making it ideal for ControlNet or Ethernet applications with the module in a remote rack.
Description
Prosoft PLC Communication Module MVI56-MNETCR
- Extended Product Type : ASCII
-
- Product ID: MVI56-MNETCR
-
- Prosoft Type Designation : ASCII
Features and Benefits
Supports up to 30 Clients
- Faster response for multi server applications
- Reduces network traffic
- Minimizes impact to other server communications when one server device goes off-line
RSLogix 5000 Integrated
- The module communication is integrated with RSLogix 5000 using a supplied Add-On Instruction (AOI) or ladder file
- No additional PAC/PLC programming required
Enable/Disable commands easily from ladder logic.
- Programatically enable various networked devices and their functions to support multiple applications or recipes, without having to reconfigure the module
Remotely configure and diagnose problems
- Easy to use Windows-based configuration software connects through remote racks using EtherNet/IP and/or ControlNet via a 1756-EnxT and/or 1756-CNB interface module without requiring RSLinx OEM saving you money
- Allows support of IT and Automation network segmentation
Specification
- Backward compatible with previous MVI56-MNETCR versions
- Single-slot 1756 ControlLogix backplane compatible
- 10/100 Mbps auto crossover detection Ethernet configuration and application port
- User-definable module data memory mapping of up to 5000, 16-bit registers
- ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
- Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
- Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
- 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English – no cryptic error or alarm codes to decipher
- ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
- Personality Module – a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration for easy disaster recovery, allowing quick in-the-field product replacement by transferring the CF card
Brand
Prosoft
