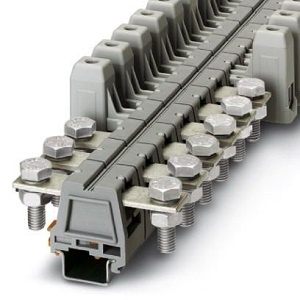

Phoenix Universal Terminal Block UHV 50-AS/AS

Description

Phoenix Universal Terminal Block UHV 50-AS/AS

• Extended Product Type : Other

• Product ID : UHV 50-AS/AS

• Phoenix Type Designation : Other

Description

• High-current connector with bolt connection, cross section: 25 mm² … 50 mm², AWG: 6 … 1/0, width: 32 mm, color: gray

Specification of Phoenix UHV 50-AS/AS

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 50 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Nominal current : 150 A
• Maximum load current : 150 A
• Nominal voltage  : 1000 V
• Length : 95 mm
• Width : 32 mm
