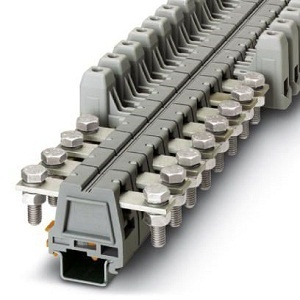

Phoenix Universal Terminal Block UHV 25-AS/AS

Description

Phoenix Universal Terminal Block UHV 25-AS/AS

• Extended Product Type : Other

• Product ID : UHV 25-AS/AS

• Phoenix Type Designation : Other

Description

• High-current connector with bolt connection, cross section: 6 – 25 mm², AWG: 10 – 4, width: 26 mm, color: gray

Specification of Phoenix UHV 25-AS/AS

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 25 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Nominal current : 101 A
• Maximum load current : 101 A
• Nominal voltage  : 1000 V
• Number of positions : 1
• Length : 88 mm
• Width : 26 mm
