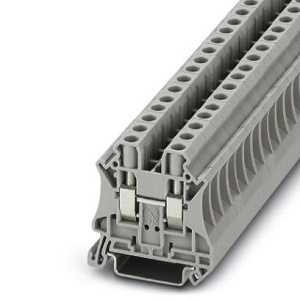

Phoenix Terminal Block UT 6

Description

Phoenix Termial Block UT 6

• Extended Product Type : Other

• Product ID : UT 6

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 1000 V, nominal current: 41 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² – 10 mm², AWG: 24 – 8, width: 8.2 mm, height: 46.9 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix UT 6

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 6 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Nominal current : 41 A
• Nominal voltage : 1000 V
• Width : 8.2 mm
• Length : 47.7 mm
