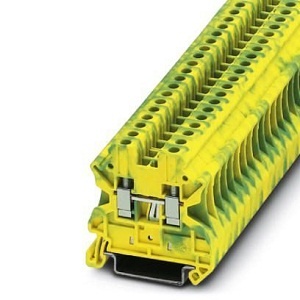

Phoenix Terminal Block UT 4-PE

Description

Phoenix Termial Block UT 4-PE

• Extended Product Type : Other

• Product ID : UT 4-PE

• Phoenix Type Designation : Other

Description

• Ground modular terminal block, connection method: Screw connection, number of connections: 2, cross section: 0.14 mm² – 6 mm², AWG: 26 – 10, width: 6.2 mm, height: 46.9 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix UT 4-PE

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 4 mm²
• Color : green-yellow
• Rated surge voltage : 8 kV
• Width : 6.2 mm
• Length : 47.7 mm
• Height : 46.9 mm
