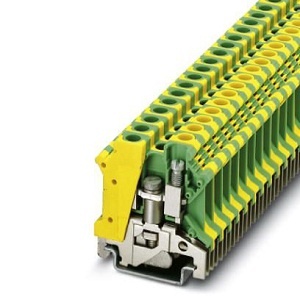

Phoenix Terminal Block USLKG 6 N

Description

Phoenix Termial Block USLKG 6 N

• Extended Product Type : Other

• Product ID : USLKG 6 N

• Phoenix Type Designation : Other

Description

• Ground modular terminal block, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² – 10 mm², AWG: 24 – 8, width: 8.2 mm, height: 45.8 mm, color: green-yellow, mounting type: NS 35/7,5, NS 35/15, NS 32

Specification of Phoenix USLKG 6 N

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 6 mm²
• Color : green-yellow
• Rated surge voltage : 8 kV
• Width : 8.2 mm
• Length : 42.5 mm
• Height : 45.8 mm
