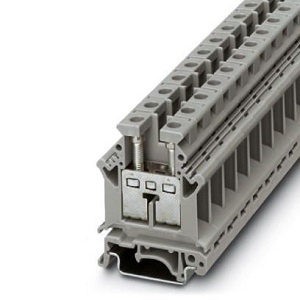

Phoenix Terminal Block UK 16 N

Description

Phoenix Termial Block UK 16 N

• Extended Product Type : Other

• Product ID : UK 16 N

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 800 V, nominal current: 76 A, connection method: Screw connection, number of connections: 2, cross section: 2.5 mm² – 25 mm², AWG: 14 – 4, width: 12.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

Specification of Phoenix UK 16 N

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 16 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Maximum load current : 101 A
• Nominal current : 76 A
• Nominal voltage  : 800 V
• Width : 12.2 mm
• Length : 42.5 mm
