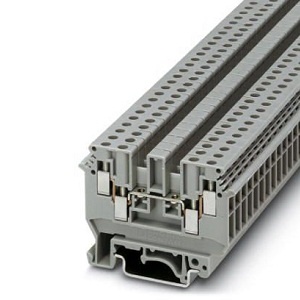

Phoenix Terminal Block UDK 4

Description

Phoenix Termial Block UDK 4

• Extended Product Type : Other

• Product ID : UDK 4

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 630 V, nominal current: 32 A, connection method: Screw connection, number of connections: 4, number of positions: 1, cross section: 0.2 mm² – 6 mm², AWG: 24 – 10, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32

Specification of Phoenix UDK 4

• Number of positions : 1
• Number of connections : 4
• Nominal cross section : 4 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Maximum load current : 32 A
• Nominal current : 32 A
• Nominal voltage  : 630 V
• Width : 6.2 mm
• Length : 63.5 mm
