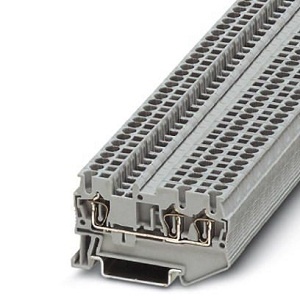

Phoenix Terminal Block ST2.5-TWIN

Description

Phoenix Termial Block ST2.5-TWIN

• Extended Product Type : Other

• Product ID : ST2.5-TWIN

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 3, cross section: 0.08 mm² – 4 mm², AWG: 28 – 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix ST2.5-TWIN

• Number of levels : 1
• Number of connections : 3
• Nominal cross section : 2.5 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Maximum load current : 28 A
• Nominal current : 24 A
• Nominal voltage  : 800 V
• Width : 5.2 mm
• Length : 60.5 mm
