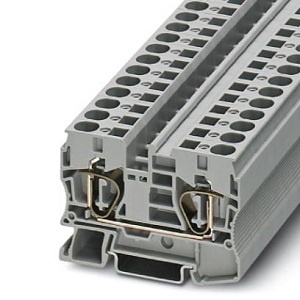

Phoenix Terminal Block ST 10

Description

Phoenix Termial Block ST 10

• Extended Product Type : Other

• Product ID : ST 10

• Phoenix Type Designation : Other

Description

• Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Spring-cage connection, number of connections: 2, cross section: 0.2 mm² – 16 mm², AWG: 24 – 6, width: 10.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15

Specification of Phoenix ST 10

• Number of levels : 1
• Number of connections : 2
• Nominal cross section : 10 mm²
• Color : gray
• Rated surge voltage : 8 kV
• Maximum load current : 65 A
• Nominal current : 57 A
• Nominal voltage  : 1000 V
• Width : 10.2 mm
• Length : 71.5 mm
