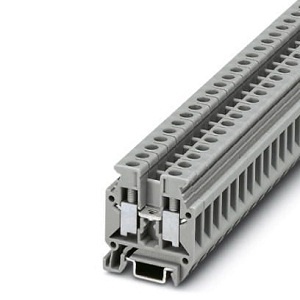

Phoenix Terminal Block MBK 5/E-Z

Description

Phoenix Termial Block MBK 5/E-Z

• Extended Product Type : Other

• Product ID : MBK 5/E-Z

• Phoenix Type Designation : Other

Description

• Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw connection, number of connections: 2, cross section: 0.2 mm² – 6 mm², AWG: 24 – 10, width: 6.2 mm, color: gray, mounting type: NS 15

Specification of Phoenix MBK 5/E-Z

• Number of levels : 1
• Number of connections : 2
• Color : gray
• Rated surge voltage : 6 kV
• Maximum load current : 41 A
• Nominal current  : 32 A
• Nominal voltage : 500 V
• Width : 6.2 mm
• Length : 28 mm
• Height : 32 mm
