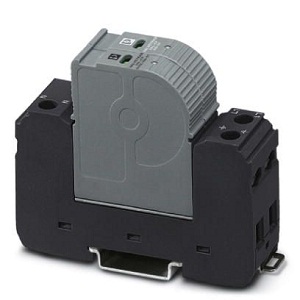

Phoenix Surge Arrester VAL-CP-1S-350 VF

Description

Phoenix Surge Arrester VAL-CP-1S-350 VF

• Extended Product Type : Other

• Product ID : VAL-CP-1S-350 VF

• Phoenix Type Designation : Other

Description

• Two-channel plug-in type 2 arrester (surge arrester) free of leakage current for single-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with remote indication contact.

Specification of Phoenix VAL-CP-1S-350 VF

• Height : 98.5 mm
• Width : 25.3 mm
• Depth : 70 mm
• Mounting type : DIN rail: 35 mm
• Number of positions : 2
• Maximum continuous operating voltage : 350 V AC
• Connection method : Screw connection
