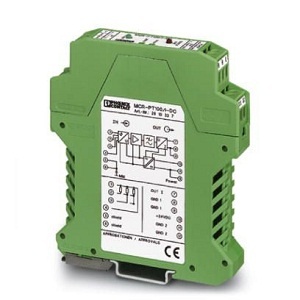

Phoenix Resistance Thermometer Measuring Transducer MCR-PT100-I

Description

Phoenix Resistance Thermometer Measuring Transducer MCR-PT100-I

• Extended Product Type : Other

• Product ID : MCR-PT100-I

• Phoenix Type Designation : Other

Description

• MCR temperature transducer for Pt 100, 2, 3 or 4-wire system, input: 0…100°C, 0…150°C, 0…200°C, 0…300°C -50…+50°C, -50…100°C, -50…150°C, -50…250°C, output signal 0(4)…20 mA

Specification of Phoenix MCR-PT100-I

• Width : 17.5 mm
• Height :  99 mm
• Depth : 114.5 mm
• Sensor input current : approx. 1 mA
• Connection technology : 2, 3, 4-wire
• Current output signal : 4 mA … 20 mA
• Supply voltage range : 20 V DC … 30 V DC
• Color :  green
• Test voltage power supply/signal : 750 V AC
