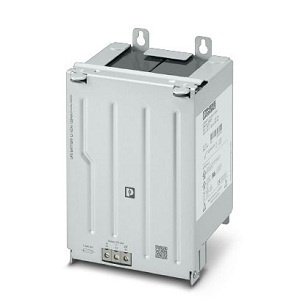

Phoenix Rechargeable Battery Module UPS-BAT/LI-ION/24DC/120WH

Description

Phoenix Rechargeable Battery Module UPS-BAT/LI-ION/24DC/120WH

• Extended Product Type : Other

• Product ID : UPS-BAT/LI-ION/24DC/120WH

• Phoenix Type Designation : Other

Description

• Energy storage device, LI-ION technology, 24 V DC, 120 Wh, for ambient temperatures of -20°C … 60°C, automatic detection and communication with QUINT UPS-IQ

Specification of Phoenix UPS-BAT/LI-ION/24DC/120WH

• Height : 202 mm
• Width : 135 mm
• Depth : 110 mm
• Nominal input voltage : 24 V DC
• Nominal output voltage : 24  V DC
• Output current : 30 A
• Connection in parallel : 3
• Output fuse : 1x 30 A ATOF 32V
• Memory medium :  LI-ION, 120 Wh
• Net weight : 2.9 kg
