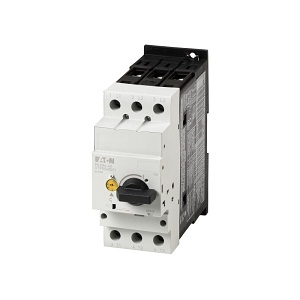

Moeller Motor Protector PKZM4-40

Description

Moeller Motor Protector PKZM4-40

• Extended Product Type : Circuit Breaker

• Product ID  : PKZM4-40

• Moeller Type Designation : Circuit Breaker

Description

• Motor-protective circuit-breaker according to IEC/EN60947, 3 pole size PKZM4, with adjustable overload and non-delayed short-circuit release, phase failure sensitive, screw and snap fitting, rated operating voltage Ue 690V, degree of protection IP20, finger proof according to VDE 0106 T. 100, accessories: auxiliary contact, voltage release

Specification of Moeller PKZM4-40

• Connection technique : Screw terminals
• Rated uninterrupted current : 40 A
• Number of poles : 3
• Rated operational voltage  : 690 V
• Current heat loss  : 20.7 W
• Short-circuit rating : 60 kA
