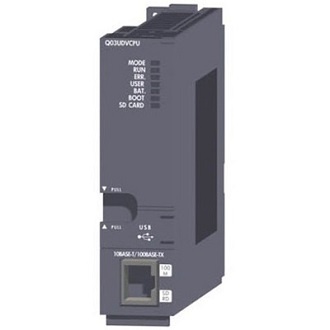

Mitsubishi Q03UDVCPU-C PLC CPU Ethernet Module Q03UDVCPUC
$1,680.00
AVAILABILITY: Generally allow 7-10 days to ship
10 in stock
Description
Mitsubishi Q03UDVCPU-C PLC CPU Ethernet Module Q03UDVCPUC
- Extended Product Type: PLC
- Product ID: Q03UDVCPU-C
- Mitsubishi Type Designation: PLC
Description of Mitsubishi Q03UDVCPU-C CPU Control Module
Mitsubishi Q03UDVCPU-C Universal Programmable Logic Controller (PLC) CPU / main unit with conformal coating – (MELSEC-Q Series (QnU)) – 30Ksteps / 120KBytes (Program) memory capacity – connection capacity 4096 x I/O points – with USB connector + RJ45 port (10/100Mbit Ethernet) – with Ethernet communication capability – Supply voltage 5Vdc (from dedicated Q-series P.S.U.) – Backplane / rack mounting – equivalent to Q03UDVCPUC
- Primary brand: Mitsubishi Electric
- Main function: CPU unit
- Product series / family name: MELSEC-Q Series (QnU)
- Functions: Universal Programmable Logic Controller (PLC) CPU / main unit, I/O control system — Refresh system, Program execution type — Stored-program cyclic operation
- Supply voltage (DC): 5Vdc (from dedicated Q-series P.S.U.)
- Memory capacity: 30Ksteps / 120KBytes (Program)
- 2048 points (Timers)
- 1024 points (Counters)
- 13312 points (Data registers)
- 9216 points (Internal relays)
- 8192 points (Latch relays)
- 8192 points (Link relays)
- 8192 points (Link register)
- 2048 points (Annunciator)
- 2048 points (Edge relays)
- 2048 points (Link special relays)
- 2048 points (Link special register)
- 98304 points (File register)
- 8192 points (Step relays)
- 20 points (Index register / standard device register)
- 10 points (32-bit ZR indexing)
- 4096 points (Pointer)
- 256 points (Interrupt pointer)
- 2048 points (Special relays)
- 16 points (Function input FX)
- 16 points (Function input FY)
- 5 points (Function register FD)
- Connection capacity: 4096 x I/O points
- Connection type: USB connector, RJ45 port (10/100Mbit Ethernet)
- Communication protocol: Ethernet
- Mounting mode: Backplane / rack
- Ambient air temperature for operation: 0…+55 °C
- Ambient air temperature for storage: -25…+75 °C
- Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Text (ST), Logic symbolic language, Function Block Diagram (FBD), MELSAP3 (SFC), MELSAP-L
- Processing time: 0.0019μs / instruction (LD instruction) – 0.0000019 ms, 0.0039μs / instruction (MOV instruction) – 0.0000039 ms, 227μs / instruction (PC MIX value) – 0.227 ms, 0.014μs (Floating point addition) – 0.000014 ms
- Storage type: SD / SDHC memory card, Extended SRAM cassette
- Refreshing time: (Constant scan) 0.5-2000ms / 0.0005-2 s
Additional information
| Weight | 3 lbs |
|---|---|
| Dimensions | 6 × 4 × 6 in |
