Description

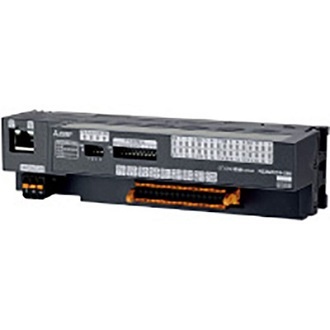

Mitsubishi NZ2MF2S1-32D Remote DC Digital Input Unit NZ2MF2S132D

• Extended Product Type: PLC
• Product ID: NZ2MF2S1-32D
• Mitsubishi Type Designation: PLC

Description of Mitsubishi NZ2MF2S1-32D DC Digital Input Unit

Mitsubishi NZ2MF2S1-32D Basic block type remote DC digital input unit – CC-Link IE Field network – for cabinet installation – (NZ2MF series) – 32I/O [32DI (32 x digital inputs (24Vdc; positive/negative common; Sink/Source))] – with spring-clamp term. connections – with CC-Link communication capability – Supply voltage 24Vdc – equivalent to NZ2MF2S132D

Specifications of Mitsubishi NZ2MF2S1-32D Remote DC Digital Input Unit

• Primary brand: Mitsubishi Electric
• Main function: Remote I/O controller
• Product series / family name: NZ2MF series
• Supply voltage (DC): 24Vdc
• Functions: Basic block type remote DC digital input unit
• Design: CC-Link IE Field network, for cabinet installation
• Connection type: spring-clamp term. connections
• Communication protocol: CC-Link
• Digital inputs: 32 x digital inputs (24Vdc; positive/negative common; Sink/Source)
• Equivalent to: NZ2MF2S132D
