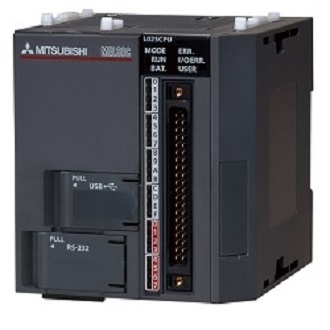

Mitsubishi L06CPU-P-AC-K Integrated I/O CPU Module L06CPUPACK

Mitsubishi L02CPU-AC-K Integrated I/O CPU Module L02CPUACK

$2,860.00

AVAILABILITY: Generally allow 7-10 days to ship

14 in stock

SKU: L02CPU-AC-K Category: Tag:
Mitsubishi

Description

Mitsubishi L02CPU-AC-K Integrated I/O CPU Module L02CPUACK

  • Extended Product Type: L-series
  • Product ID: L02CPU-AC-K
  • Mitsubishi Type Designation: L-series

Description of Mitsubishi L02CPU-AC-K Integrated I/O Module

Mitsubishi L02CPU-AC-K Programmable logic controller (PLC) CPU module with integrated I/Os with AC P.S.U. – AC power – (MELSEC-L Series) – 28I/O [18DI (10 x digital inputs (24Vdc; Source) + 6 x digital inputs (high-speed; 10μs; Source) + 2 x digital inputs (high-speed counter; 200kHz; Source)) + 10DO (8 x digital outputs (24Vdc; Source) + 2 x digital outputs (axis positioning channel; PTP control; abs. / incr.))] – 60Ksteps / 240KBytes (Program) memory capacity – connection capacity 4096 x I/O points – with USB connector + RJ45 port (10/100Mbit Ethernet) – with Ethernet communication capability – Supply voltage 100-240Vac (120Vac / 208Vac / 220Vac / 230Vac) – equivalent to L02CPUACK

Specification of Mitsubishi L02CPU-AC-K Integrated I/O CPU Module

  • Primary brand: Mitsubishi Electric
  • Main function: CPU unit
  • Product series / family name: MELSEC-L Series
  • Supply voltage (AC): 100-240Vac (120Vac / 208Vac / 220Vac / 230Vac)
  • Functions: Programmable logic controller (PLC) CPU module with integrated I/Os
    • I/O control system — Refresh system
    • Program execution type — Stored-program cyclic operation
  • Design: AC P.S.U.,  AC power
  • Memory capacity: 60Ksteps / 240KBytes (Program)
    • 768KBytes (Standard RAM)
    • 2048 points (Timers)
    • 1024 points (Counters)
    • 12288 points (Data registers)
    • 1024KBytes (Standard ROM)
    • 8192 points (Link register)
    • 2048 points (Annunciator)
    • 2048 points (Edge relays)
    • 2048 points (Link special relays)
    • 2048 points (Link special register)
    • 32768 points (File register R)
    • 8192 points (Step relays)
    • 20 points (Index register Z)
    • 4096 points (Pointer)
    • 256 points (Interrupt pointer)
    • 2048 points (Special relays)
    • 16 points (Function input FX)
    • 16 points (Function input FY)
    • 5 points (Function register FD)
    • 2048 points (Special register)
  • Connection capacity: 4096 x I/O points
  • Connection type: USB connector, RJ45 port (10/100Mbit Ethernet)
  • Communication protocol: Ethernet
  • Digital inputs: 10 x digital inputs (24Vdc; Source)
    • 6 x digital inputs (high-speed; 10μs; Source)
    • 2 x digital inputs (high-speed counter; 200kHz; Source)
  • Digital outputs: 8 x digital outputs (24Vdc; Source)
    • 2 x digital outputs (axis positioning channel; PTP control; abs. / incr.)
  • Ambient air temperature for operation: 0…+55 °C
  • Programming languages: Ladder diagram (LD) / Relay symbol language, Structured Text (ST), Logic symbolic language, Function Block Diagram (FBD), MELSAP3 (SFC), MELSAP-L
  • Processing time: 0.0095μs / instruction (LD instruction) – 0.0000095 ms
    • 0.019μs / instruction (MOV instruction) – 0.000019 ms
  • Contents: L02CPU-P, L61P, GX WORKS2 + USB cable
  • Equivalent to: L06CPUPACK
  • Storage type: Memory card (ROM)
  • Ambient air temperature for storage: -25…+75 °C
  • Refreshing time: (Constant scan) 0.5-2000ms / 0.0005-2 s

Additional information

Weight 5 lbs
Dimensions 8 × 6 × 8 in
