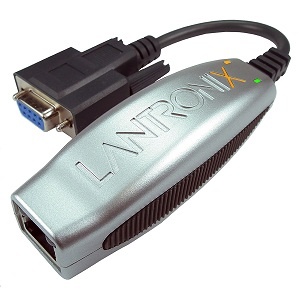

Lantronix Ethernet Module XDT4851002-01-S

Description

Lantronix Ethernet Module XDT4851002-01-S

• Extended Product Type : Other

• Product ID : XDT4851002-01-S

• Lantronix Type Designation : Other

Features

• Complete Network Connectivity Solution
• Integrated 10/100 Ethernet Port and
• Serial Cable
• Complete Device Server Application with Full IP Stack and Web Server
• Space Saving Form Factor
• Serial Data Rate of up to 921.6 Kbps
• 128/192/256-bit AES Encryption
• Flexible Power Options including PoE
• Extended Temperature Range of -40° to 85°C

Specification of Lantronix XDT4851002-01-S

• Modes : RS232, RS422* or RS485* (2 and 4 wire support)
• Baud Rate : 300bps to 921.6 Kbps
• Characters : 7 or 8 data bits
• Stop Bits : 1 or 2
• Control Signals : CTS/RTS (Hardware)
• Speed : 10/100 Mbps
• Connector : RJ45
• CPU : Based on DSTni-EX Enhanced 16-bit x86 Architecture
• Memory : 256 KB SRAM, 1 MB Flash
• Input Voltage : 5V at mini-USB-B jack
• Input Voltage : 5-15 VDC at DB9F pin 9
• Power Consumption : 1.3W max w/o PoE, 2.0W max wit
• Weight : 0.068 Kg
