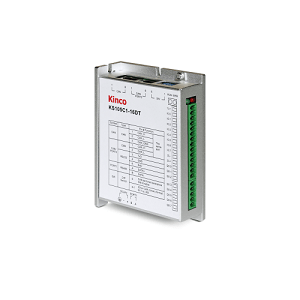

Kinco CPU Module KS105-16DT

Description

Kinco CPU Module KS105-16DT

• Extended Product Type : PLC

• Product ID : KS105-16DT

• Kinco Type Designation : PLC

Specification of Kinco KS105-16DT

• 16 integrated I / Os : 8 x DI 24V DC, 8 x DO 24V DC, transistor output
• Communication port : 1 RS-232, 1 RS-485
• Scan speed of the LD instruction : 0.25us
• High speed meter : 4, 200KHz max.
• High speed output : 3, 200KHz max. ; 1, 10KHz max.
• Connection of extension modules possible : 14 modules
• Dimensions (W x H x D) : 22 x 100 x 72  mm
