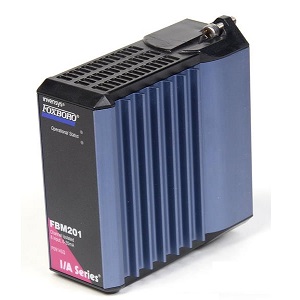

Foxboro FBM201

Description

Foxboro FBM201

• Extended Product  Type : PLC

• Product ID : FBM201

• Foxboro Type Designation : PLC

Features

• Eight channels for input of analog sensor signals: 0 to 20 mA dc – FBM201, 0 to 100 mV dc – FBM201b, 0 to 5 V dc – FBM201c, 0 to 10 V dc – FBM201d, Each analog input channel is galvanically isolated from other channels and ground, Compact, rugged design suitable for enclosure in Class G3 (harsh) environments ,Execution of an analog input application program that provides conversion time and configurable options for integration time and Rate of Change Limits , High accuracy achieved by sigma-delta data conversions for each channel, Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM201/b/c/d modules, Termination Assemblies for per channel internally and/or externally loop powered transmitters.

Specification of Foxboro FBM201

• Product Type : Analog Input Interface Modules
• Input Channels  : 8 isolated and independent channels
• Input Range : 0 to 20 mA dc
• Consumption : 7 W (maximum)
• Heat Dissipation : 3 W (maximum)
• Dimensions (L x W x H) : 10.4 cm x 4.5 cm x 11.4 cm
• Weight : 0.284 Kg
