B&R Power Panel 4P3040.01-490

Description

B&R Power Panel 4P3040.01-490

• Extended Product Type : HMI/Touch Screen

• Product ID : 4P3040.01-490

• B&R Type Designation :  HMI/Touch Screen

Description

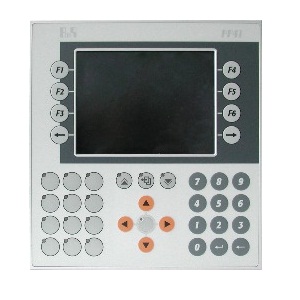

• Power Panel PP41 5.7 inch QVGA monochrome LC-Display, 8 softkeys and 32 function keys, system compatible 2003 CPU, 700 KB SRAM, 1,4 MB FlashPROM, 1 PCMCIA slot, 1 RS232 interface, 1 CAN interface: electrically isolated, network-capable, 6 slots for screw-in modules, 10 digital inputs 24 VDC, 8 digital outputs 24 VDC, 0.4 A, Protection IP65 (from front), 205×220 mm (WxH), 24 VDC, order TB712 terminal blocks separately.

Specification

• Display Type : Monochrome LCD
• Resolution : QVGA, 320 x 240 pixels
• Nominal voltage : 24 VDC
• Nominal output current : 0.4 A
• Function keys : 15
• Power consumption : Max. 20 W
• Weight : 1.95 kg
