Bently Nevada 3500/50M

Description

Bently Nevada 3500/50M

• Extended Product  Type : PLC

• Product ID : 3500/50M

• Bently Nevada Type Designation : PLC

Description

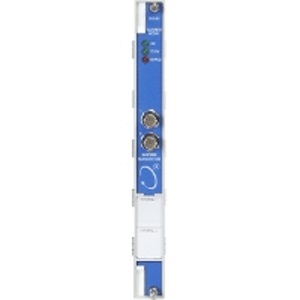

• The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated.

Specification of Bently Nevada 3500/50M

• Series : 3500
• Input signal range : +10.0 V to -24.0 V
• Power consumption : 5.8 watts, typical
• Front panel LEDs : OK, TX/RX, Bypass
• Output impedance : 550 Ω
• Dimensions(H x W x D) : 9.50 in x 0.96 in x 9.52 in
• Weight : 0.82 Kg
