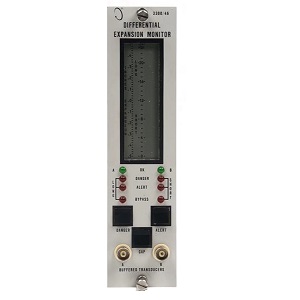

Bently Nevada 3300/46

Description

Bently Nevada 3300/46

• Extended Product  Type : PLC

• Product ID : 3300/46

• Bently Nevada Type Designation : PLC

Description

• The Bently Nevada 3300/46 Ramp Differential Expansion Monitor provides for an alternate measurement technique that allows increased monitoring ranges from standard transducers. It is also extremely useful when conventional methods from a collar are not possible. Two proximity probes are used to observe ramp surfaces, on the rotor, in order to provide one channel of differential expansion. Using ramp surfaces allows increased monitor range with smaller transducers. The monitor’s ability to use ramp surface targets also provides added flexibility when choosing a transducer mounting location. Both the magnitude and direction of differential expansion are displayed on the LCD. The monitor provides four alarm setpoints.

Specification of Bently Nevada 3300/46

• Series : 3300
• Type : Differential Expansion Module
• Input Impedance : 10 kΩ
• Power Consumption : Nominal consumption of 1.5 watts
• Resolution : Within ±1.6% of monitor fullscale
• LED Indicators : OK, Alarm, Bypass
