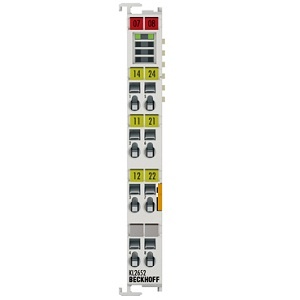

Beckhoff Terminal KL2652

Description

Beckhoff Terminal KL2652

• Extended Product Type : Other

• Product ID : KL2652

• Beckhoff Type Designation : Other

Specification of Beckhoff KL2652

• Number of outputs : 2 x change-over
• Nominal voltage : 230 V AC (max. switching voltage 250 V AC/300 V DC)
• Load type : ohmic, inductive, lamp load
• Max. output current : 5 A per channel
• Switching current : max. 1 A AC/1 A DC at 40 V DC; max. 0.15 A at 300 V DC (UL: max. 230 V AC, 1 A)
• Current consumption from K-bus : typ. 90 mA
• Weight : approx. 55 g
