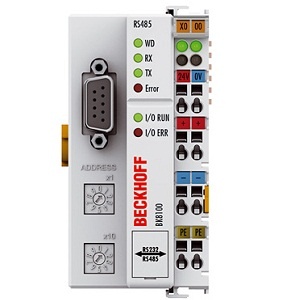

BECKHOFF RS485/RS232 Bus Coupler BK8100

Description

Beckhoff RS485/RS232 Bus Coupler BK8100

• Extended Product Type : Other

• Product ID : BK8100

• Beckhoff Type Designation : Other

Specification of Beckhoff BK8100

• Number of I/O stations : 1 (peer-to-peer connection)
• Number of I/O points : depending on controller
• Number of Bus Terminals : 64
• Digital peripheral signals : 512 inputs/outputs
• Analog peripheral signals : 256 inputs/outputs
• Power supply : 24 V DC (-15 %/+20 %)
• Input current : 70 mA + (total K-bus current)/4, 500 mA max.
• Current supply K-bus : 1750 mA
• Weight : approx. 170 g
