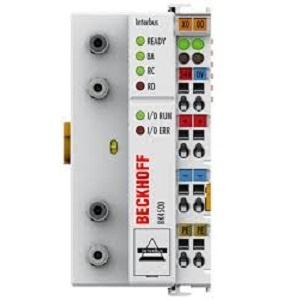

BECKHOFF Interbus Bus Coupler BK4500

Description

Beckhoff Interbus Bus Coupler BK4500

• Extended Product Type : Other

• Product ID : BK4500

• Beckhoff Type Designation : Other

Specification of Beckhoff BK4500

• Number of I/O stations : 256
• Number of I/O points : 4,096
• Data transfer time : approx. 1 ms in the case of 10 modules for 32 bit input and output each
• Number of Bus Terminals : 64
• Digital peripheral signals : 512 inputs/outputs
• Analog peripheral signals : 32 inputs/outputs
• Power supply : 24 V DC (-15 %/+20 %)
• Input current : 70 mA + (total K-bus current)/4, 500 mA max.
• Current supply K-bus : 1,750 mA
• Weight : approx. 170 g
