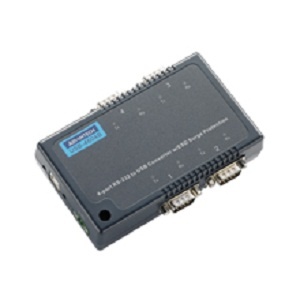

Advantech 4-port Serial to USB Converter with ESD Surge Protection USB-4604B

Description

Advantech 4-port Serial to USB Converter with ESD Surge Protection USB-4604B

• Extended Product Type : Other

• Product ID : USB-4604B

• Advantech Type Designation : Other

Features

• Full compliance with USB V1.1 and V2.0 specifications.
• RS-232 port supported
• Transmission speed up to 921.6 kbps
• Bus-powered; no need for external power supply
• Plug & Play installation
• No additional IRQs or I/O ports required
• Hot swap function support

Specification of Advantech USB-4604B

• Power Input : 12 to 48 VDC (external) or 5 VDC (Bus powered)
• Power Consumption : 130 mA @ 5 V (Typical),  200 mA @ 5 V (Max.)
• No. of Ports :  4
• Mounting : DIN-rail, panel
