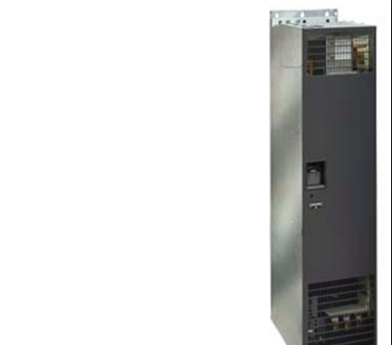

6SE6440-2UD41-3GA1 SIMATIC MM4 POWER 132 KW 6SE64402UD413GA1 M440

Siemens Micromaster 440 (MM440) Series AC Frequency Inverter for 132kW (179HP) 400V 3 Ph motor to 250A at high overload, or 160kW (217HP) to 302A when Fan/Pump rated, operates in VxF or Sensorless (open loop) Flux Vector control. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size GX – 326mm Wide x 1533mm High x 545mm Deep. IP20.

Overload – 150% x 60seconds and 200% x 3seconds when High torque rated.
Overload – 110% x 60seconds and 140% x 3seconds when Fan/Pump rated.
Speed Control Range – 0Hz to 650Hz.
Braking – None (add the optional external brake unit if required).

2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs
Input Current – 245A at high overload or 297A when Fan/Pump rating set.
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for equivalent with EMC filtering.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 350mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Mounting via 6 x M8 Bolts.

Full part number is – 6SE6440-2UD41-3GA1 or 6SE64402UD413GA1. Note: Siemens is sometimes incorrectly spelled Seimens.

Description

Siemens Micromaster 440 (MM440) Series AC Frequency Inverter for 132kW (179HP) 400V 3 Ph motor to 250A at high overload, or 160kW (217HP) to 302A when Fan/Pump rated, operates in VxF or Sensorless (open loop) Flux Vector control. Simple set-up and ready to run from its default settings.

No keypad included – see linked products below for Basic and Advanced Operator Panels.

Frame Size GX – 326mm Wide x 1533mm High x 545mm Deep. IP20.

Overload – 150% x 60seconds and 200% x 3seconds when High torque rated.
Overload – 110% x 60seconds and 140% x 3seconds when Fan/Pump rated.
Speed Control Range – 0Hz to 650Hz.
Braking – None (add the optional external brake unit if required).

2 Analogue Inputs, 6 Digital Inputs, 2 Analogue Outputs, 3 Relay Outputs
Input Current – 245A at high overload or 297A when Fan/Pump rating set.
Input Voltage – 3ph 380-480V ± 10%, 47-63Hz
No EMC Filter. See linked products below for equivalent with EMC filtering.

Wall mount in clean environment or cubicle mount.
Rated -10° to 50°C Ambient.
Ventilation space above and below – 350mm.
Ventilation space at sides – 0mm (drives can be mounted side by side).
Mounting via 6 x M8 Bolts.

Full part number is – 6SE6440-2UD41-3GA1 or 6SE64402UD413GA1. Note: Siemens is sometimes incorrectly spelled Seimens.
